Description
Features:
- Intel® LGA 1700 socket: Ready for 12th and 13th Gen Intel® processors

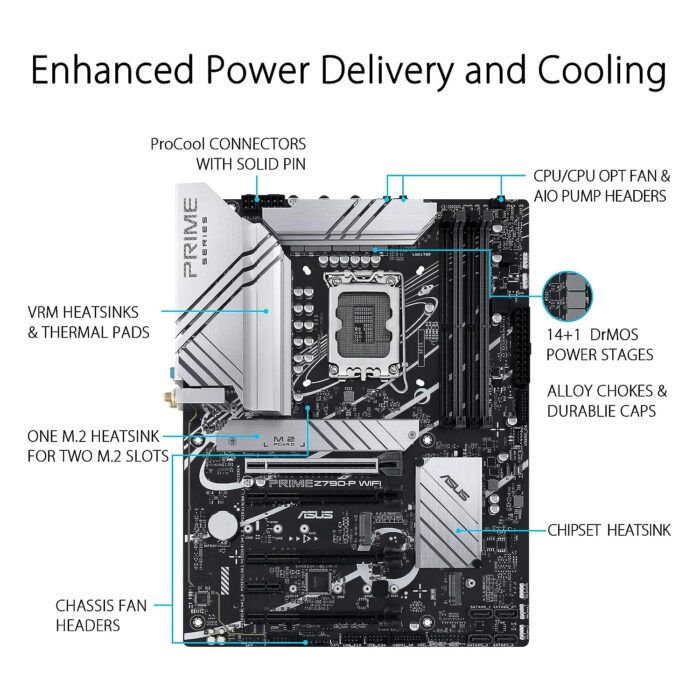

- Enhanced power solution: 14+1 DrMOS, 6-layer PCB, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
- Next-gen connectivity: DDR5 memory, PCIe® 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen2x2 Type-C®, front panel USB 3.2 Gen 2 Type-C®, Thunderbolt™ (USB4®) header support, 3 PCIe® 4.0 M.2
- Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
- Comprehensive cooling: Large VRM heatsinks, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4 with AI Cooling II
- ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
Specifications:
| CPU |
|
| Chipset | Intel® Z790 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR5 7200+/7000/6800/6600/6400/ 6200/ 6000/ 5800/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration |
| Graphics | 1 x DisplayPort
1 x HDMI® port Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. |

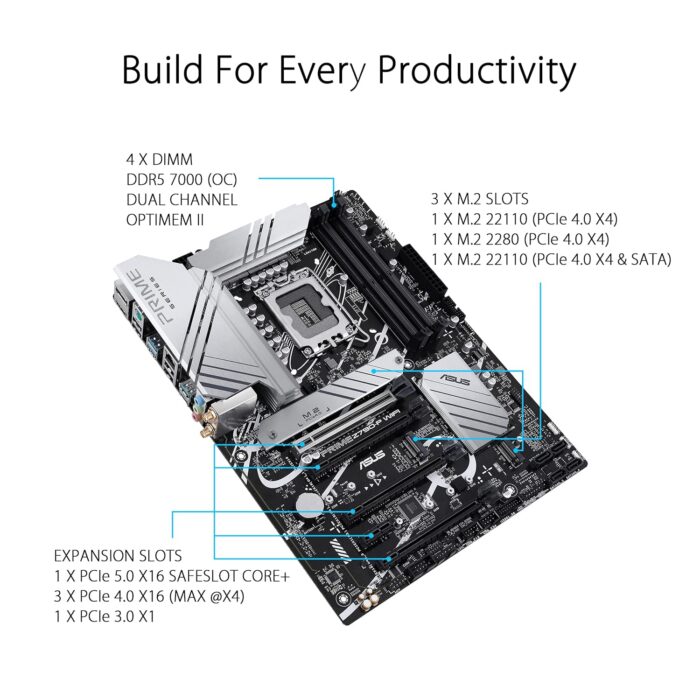

| Expansion Slots | Intel® 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot Intel® Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel® Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth | Vertical M.2 slot only (Key E, CNVi & PCIe)
Wi-Fi module is sold separately. |
| USB | Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth. |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features Audio Shielding Premium audio capacitors Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

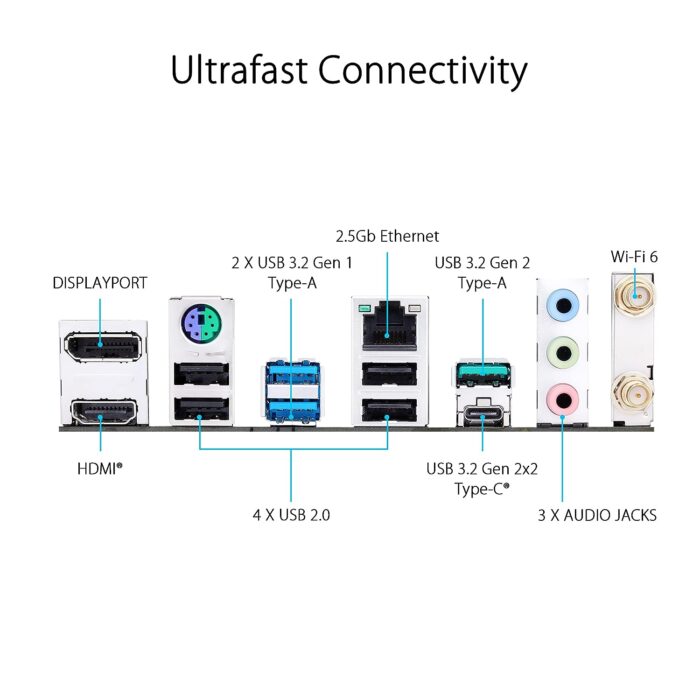

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Vertical M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | Fan and Cooling related

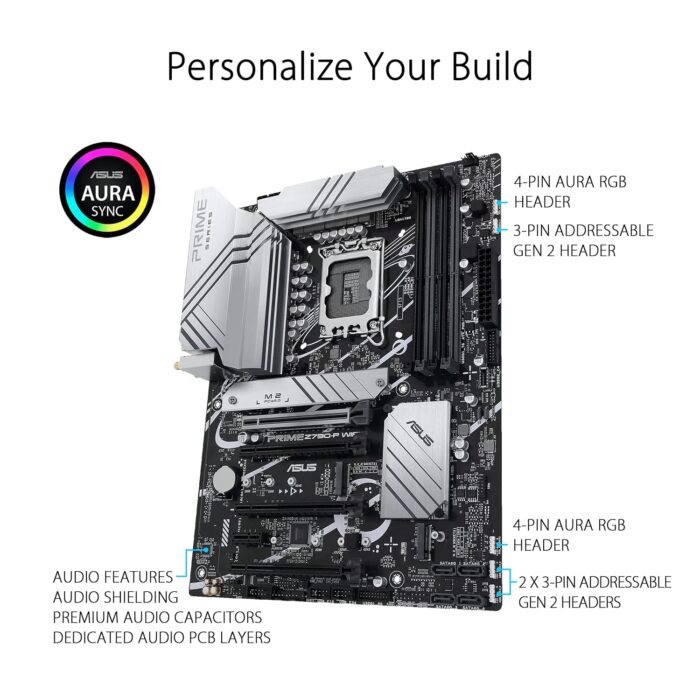

1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt™ (USB4®) Header |
| Special Features | ASUS 5X PROTECTION III
DIGI+ VRM (- Digital power design with DrMOS) LANGuard Overvoltage Protection SafeSlot Core+ Stainless-Steel Back I/O ASUS Q-Design Q-DIMM Q-Slot Q-LED Core ASUS Thermal Solution Flexible M.2 heatsink VRM heatsink design ASUS EZ DIY ProCool Aura Sync Aura RGB headers Addressable Gen 2 headers |
| Software Features | ASUS Exclusive Software
Armoury Crate Aura Sync Fan Xpert 4 (with AI Cooling II) Power Saving AI Suite 3 TurboV EVO PC Cleaner DIGI+ VRM ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

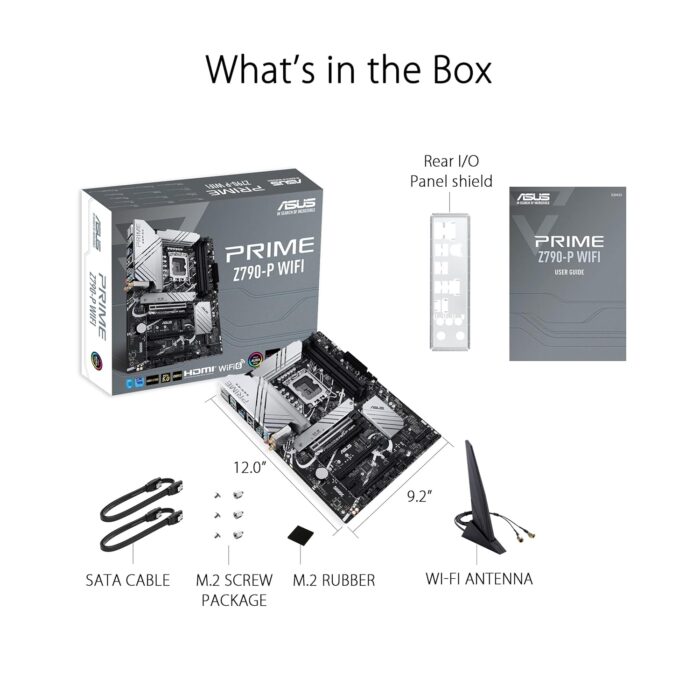

| Accessories | Cables
2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 2 x Screw packages for M.2 SSD Documentation 1 x ACC Express Activation Key Card 1 x User guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | ATX Form Factor
12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
