Product Description
Features:
CLOCK: GPU / MOMORY
- Boost Clock: Up to 3290 MHz/ 20Gbps
- Game Clock: 2700 MHz/ 20Gbps
KEY SPECIFICATIONS:
- AMD Radeon RX 9060 XT GPU
- 8GB GDDR6 on 128-bit Memory Bus
- AMD RDNA 4 Architecture
- 32 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
- Microsoft DirectX 12 Ultimate
- PCI Express5.0 Support
- 1 x 8-pin Power Connectors
- 2 x DisplayPort 2.1a / 1 x HDM 2.1b
CLOCK: GPU / MOMORY
- Dual Fan Design
- Stylish Metal Backplate
- LED Indicator
- LED On/Off Switch
- Striped Axial Fan
- 0db Silent Cooling
- Super Alloy Graphic Card

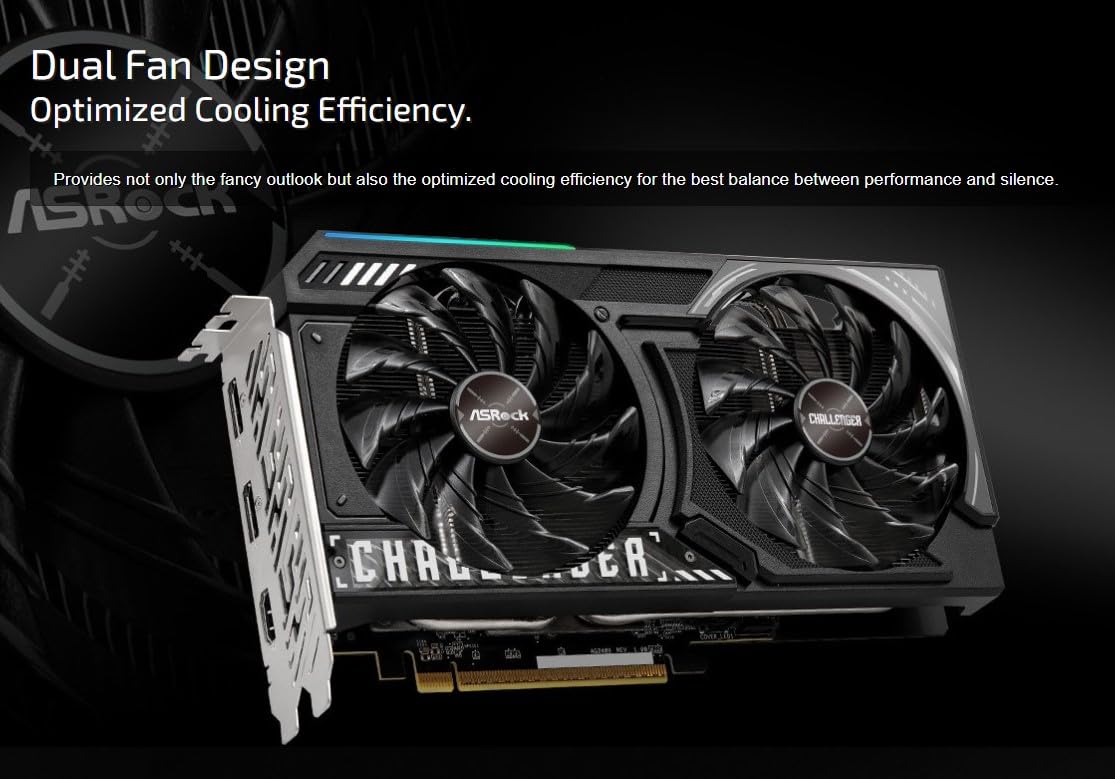

Dual Fan Design Optimized Cooling Efficiency.
Provides not only the fancy outlook but also the optimized cooling efficiency for the best balance between performance and silence.

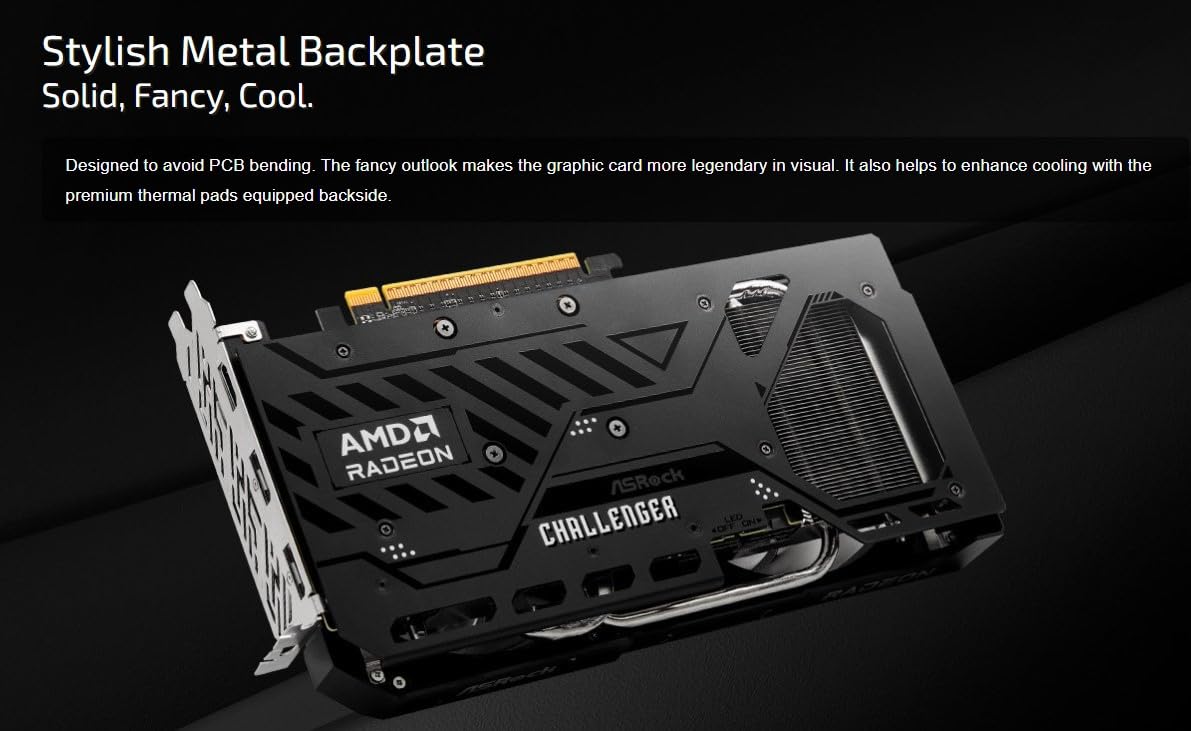

Stylish Metal Backplate Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.

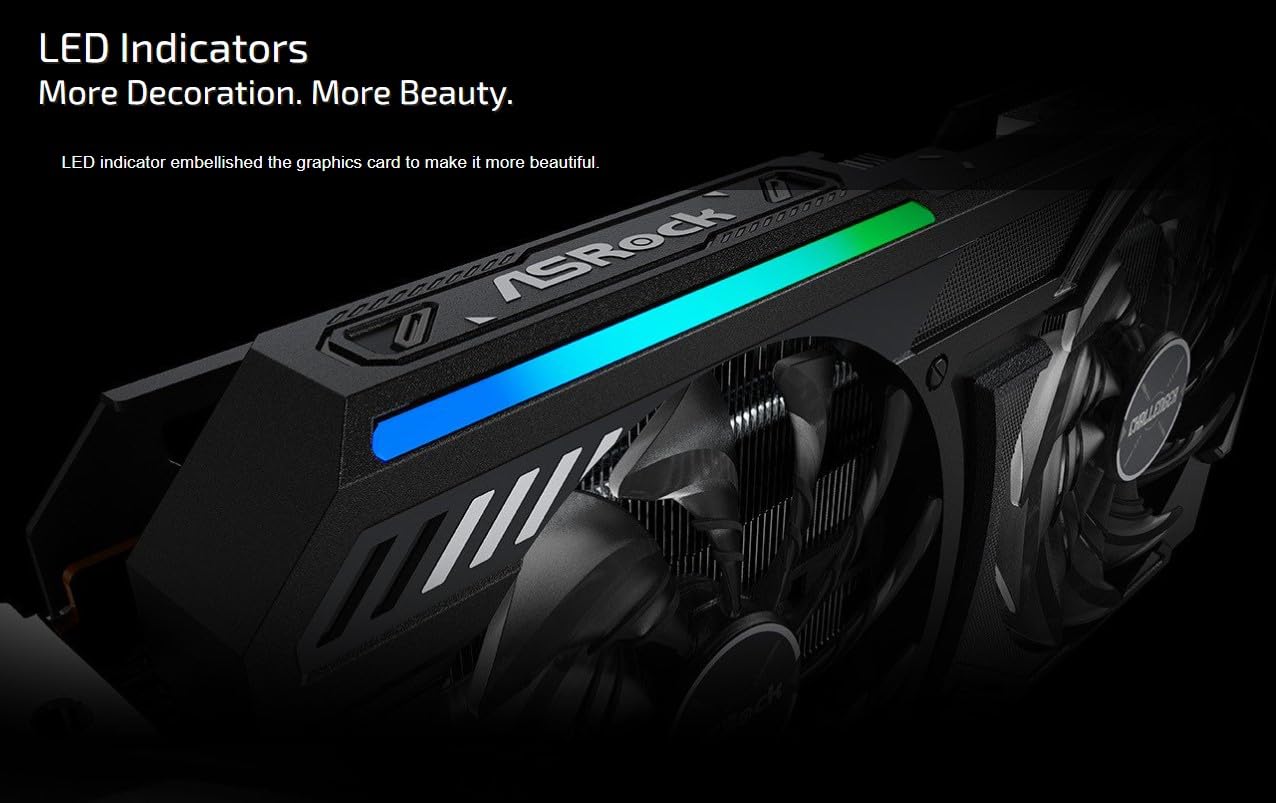

LED Indicators More Decoration. More Beauty.
LED indicator embellished the graphics card to make it more beautiful.
LED Switch Switch on/off as you want.
You can switch LED on or off depends on the scenarios or your need.
Striped Axial Fan Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
0dB Silent Cooling Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Ultra-fit Heatpipe Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
High-density Metal Welding Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Nano Thermal Paste Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Premium Thermal Pad Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
| GRAPHICS | |
| Model | RX9060XT-CL-8GO |
| Chipset | AMD RADEON |
| GPU | RX 9060 XT |
| Engine Clock |
|
| PCI EXPRESS | 5.0 |
| MEMORY CLOCK | 20 Gbps |
| MEMORY SIZE | 8 GB |
| MEMORY INTERFACE | 128-BIT |
| MEMORY TYPE | GDDR6 |
| OpenGL | 4.6 |
| PORTS | HDMI,DisplayPort |
| DirectX | 12 Ultimate |
| RESOLUTION | 7680 x 4320 |
| COOLER | Dual Fan |
| Max Display Support | 3 |
| Recommended PSU | 550W |
| GPU CORE (CUDA CORE) | 2048 |
| POWER CONNECTORS | 1 x 8-pin |
| WARRANTY | 3 Years |
| NOTE** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
